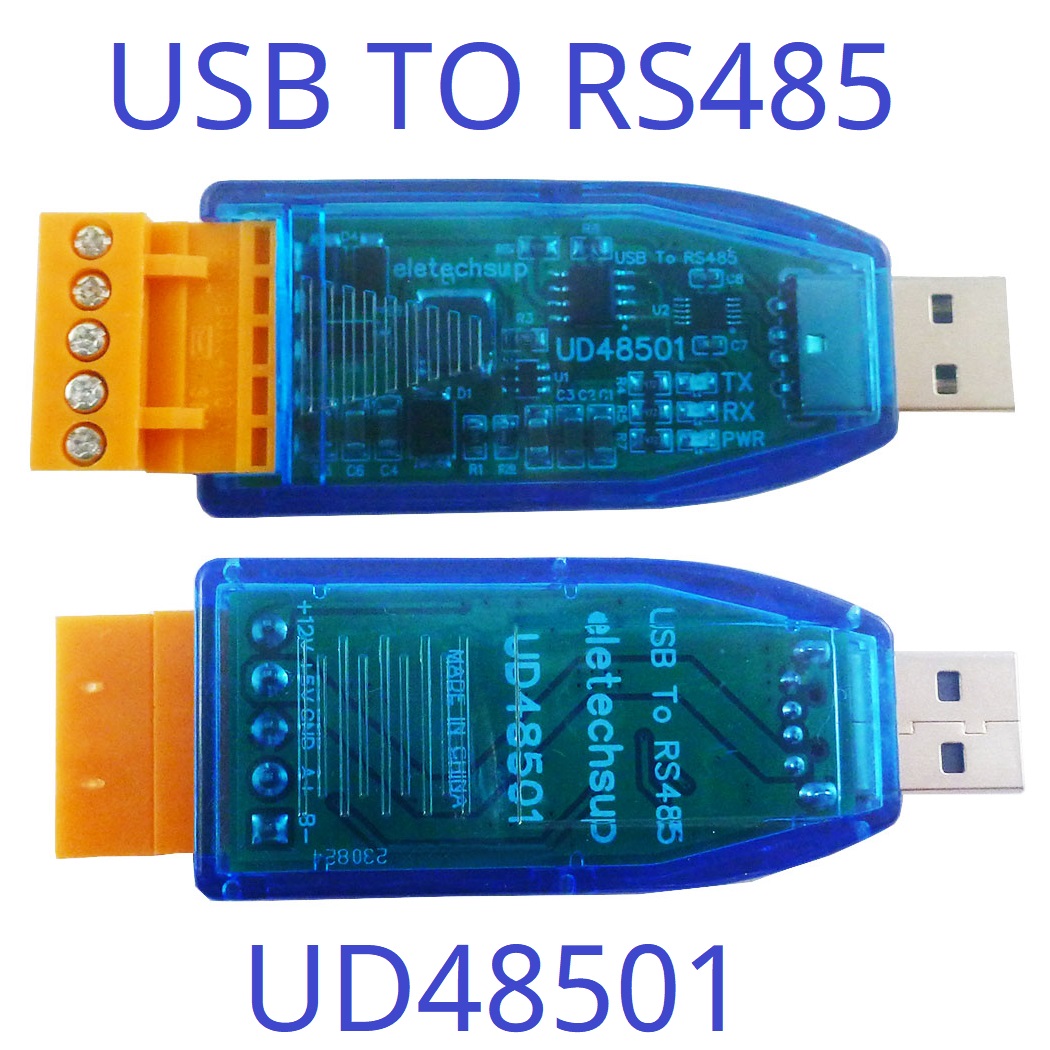

UD48501 VCC Output USB to RS485 programmer

UD48501 VCC Output USB to RS485 programmer

  • Model: UD48501
  • Availability: In stock
  • Weight: 0.025Kg
$8.99
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns

Packing list:

1 PCS 2 IN 1 5V TO 12V DC DC Boost & USB to RS485 UART Converter


USB TO RS485(UD48501) Function:
USB driver chip: CH340E
RS485 bus chip: SP485 or compatible chip
BAUD 0.1K-256K BPS
TVS Anti-Surge

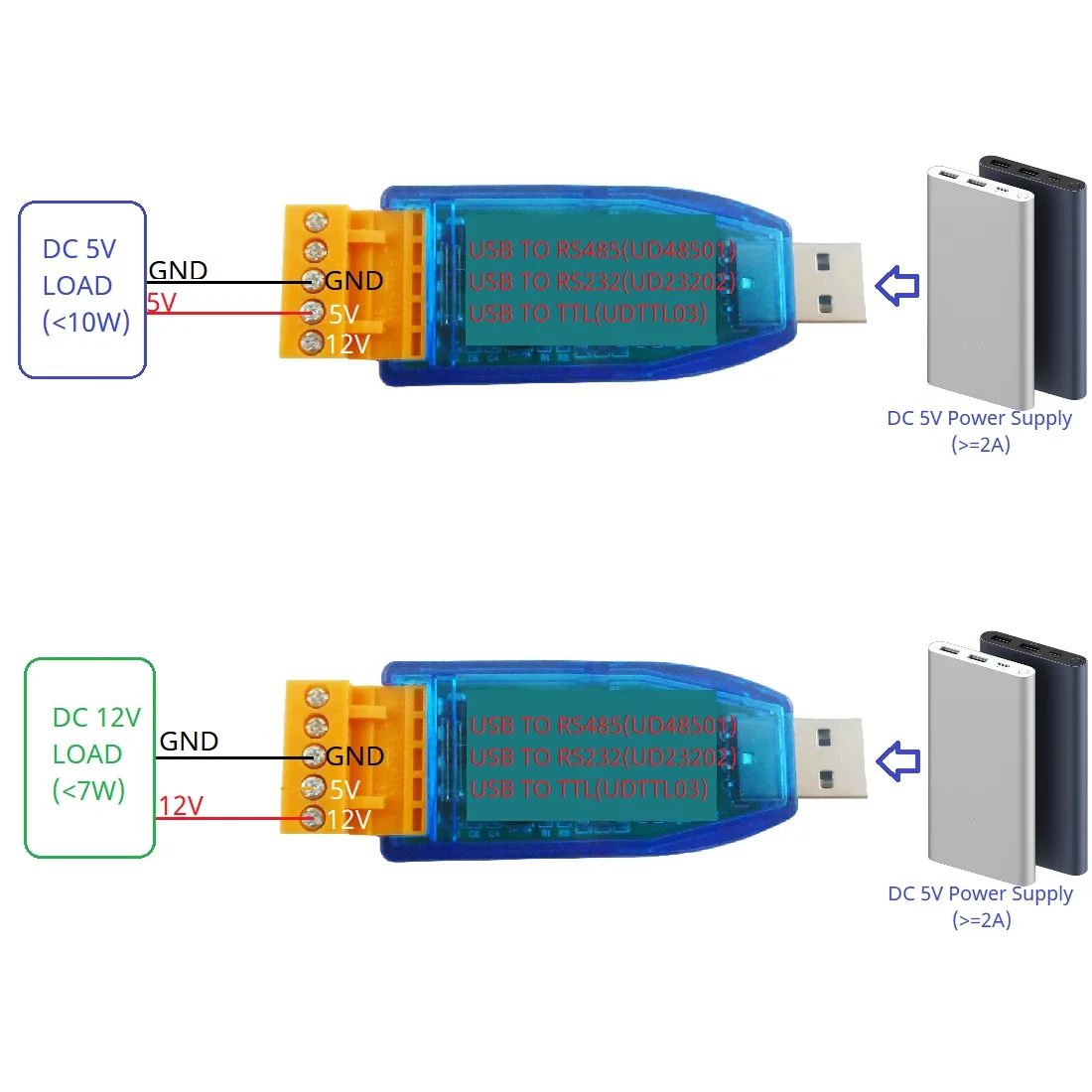

DC 5V TO 12V 0.6A Booster

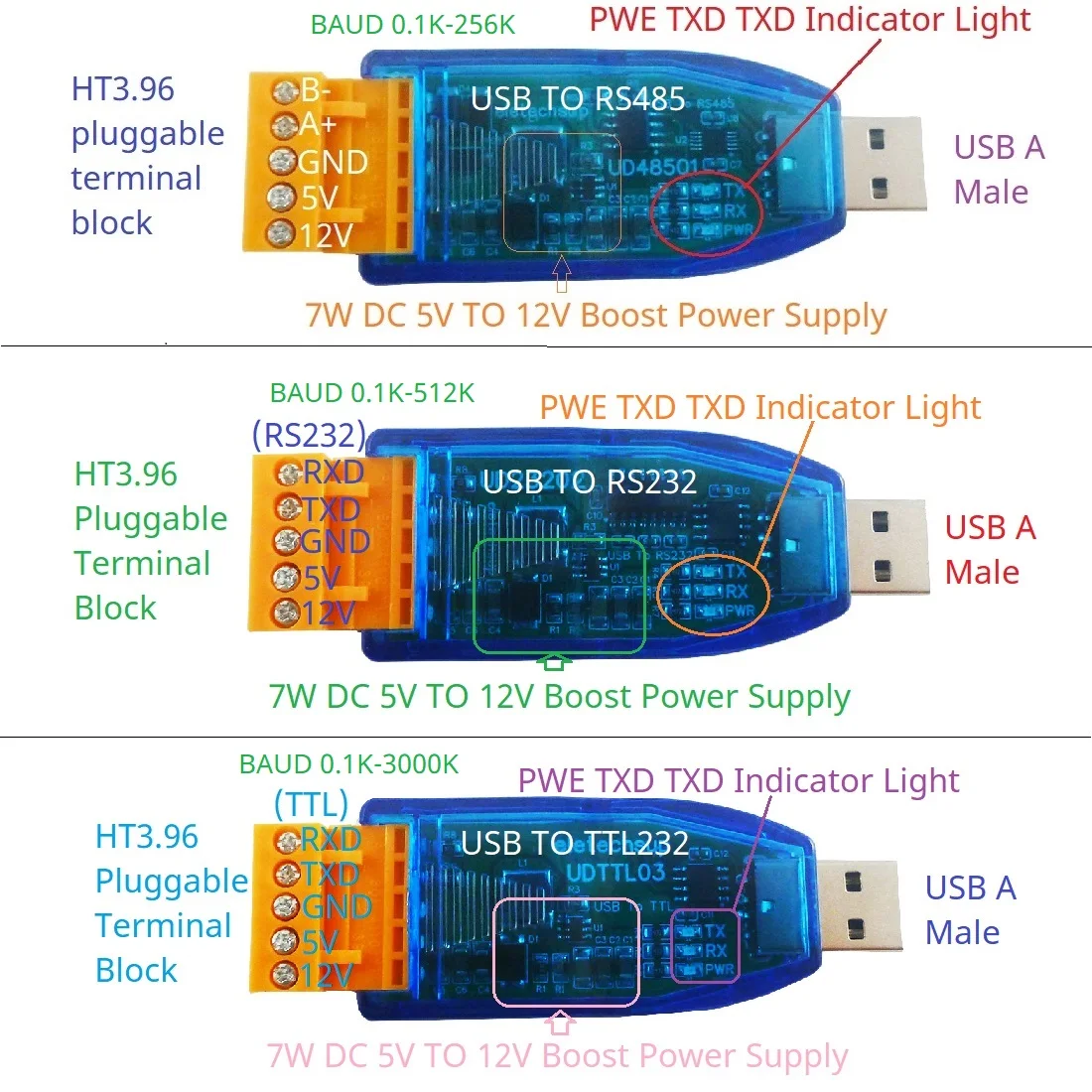

PIN:12V 5V GND A+ B-(RS485)
PWE TXD TXD Indicator Light
Size : 80 x 26 x 15mm
Weight : 19.5g



Description:
This is Industrial grade USB TO RS485/RS232/TTL232 Converter,With 12V 0.6A power output
The USB driver IC is CH340E/N, stable performance, fully compatible with USB1.1,USB2.0,USB3.0
Supports the following OSes:
supports Windows 11/10/8.1/8/7/VISTA/XP/2000/98
supports Windows XP/Vista/7/8/8.1/10/11/ SERVER 2003/2008/2012/2016/2019/2022 -32/64bit
Linux OS
​MAC OS


Application :

RS485/RS232/TTL232 Bus device
5V 12V RS485 device(CE035 NTA8A01 R46CA01 R4D1C32 R421B16 R4D3B16 etc.)
PLC Modubs Remote IO Device
PTZ IP Camera
Computer communication terminal
Remote control, remote measurement system;
Wireless meter ;
Smart Home,Home Automation ,Wiser Home;
Access control ;
Identification system ;
Data collection;
IT household appliance ;
Intelligence household appliance;
Baby monitoring system;
