Product Name: RS485 RS232 UART 13.56MHz RFID Reader Writer RC522 CV520 NFC UID IC Card For Arduino For Uno Mega pi
Package inlcuded:

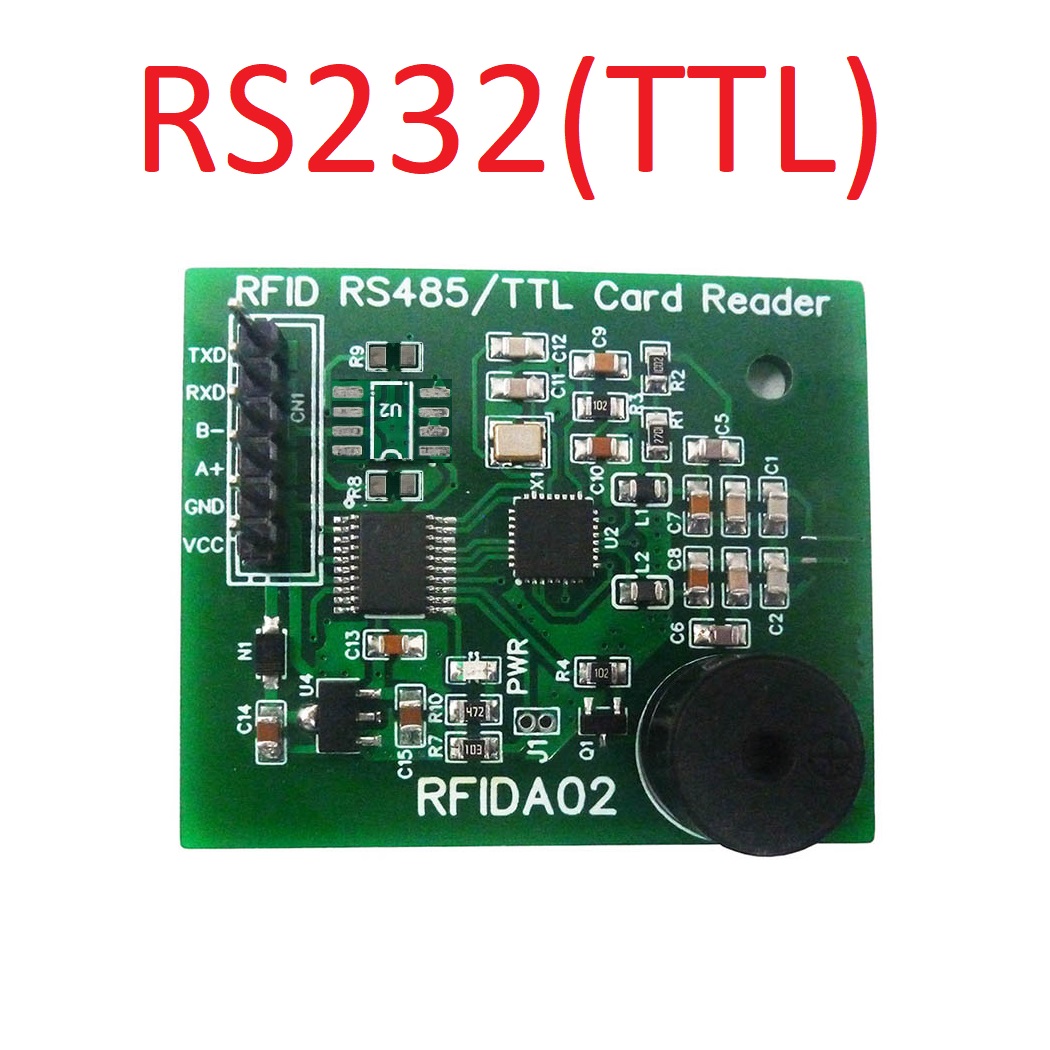

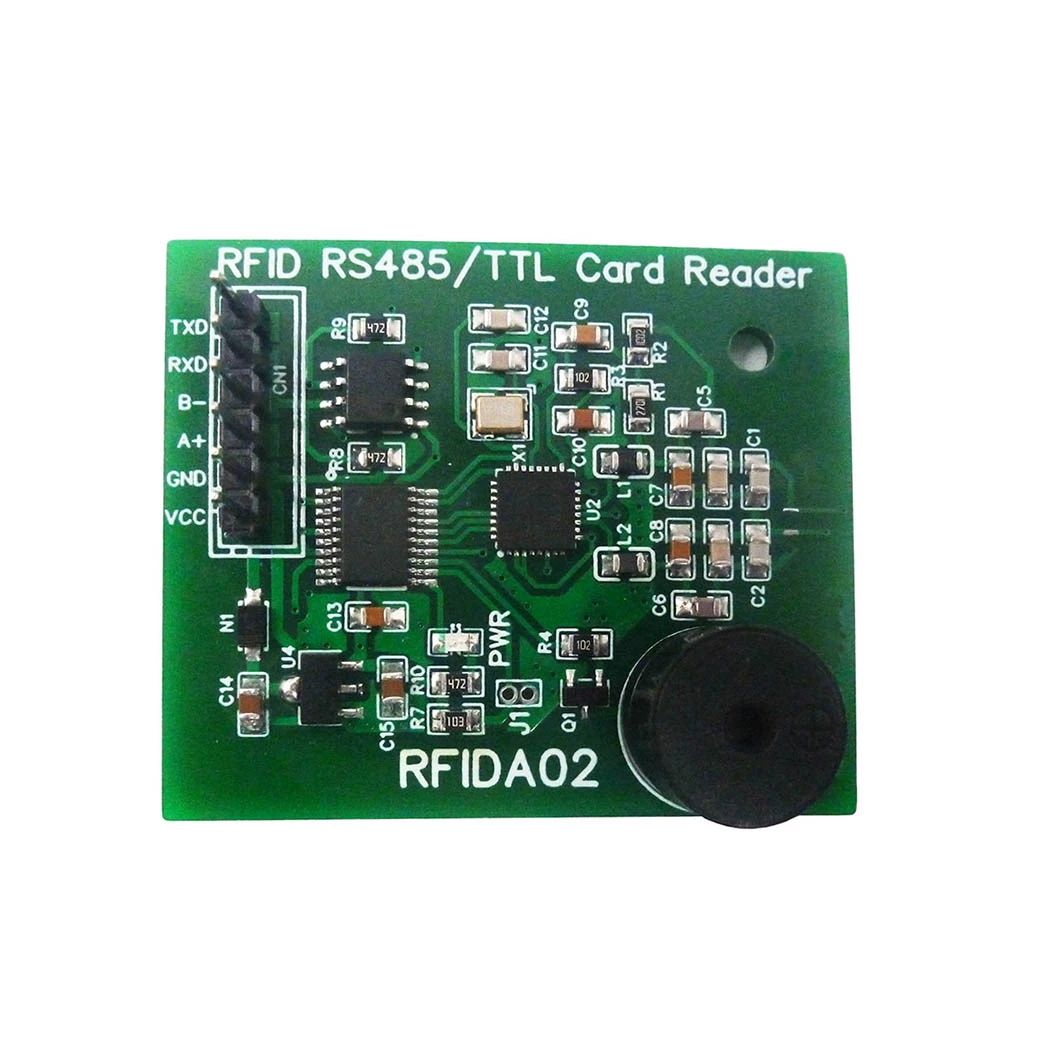

1 pcs RFIDA02 RS485/TTL232 UART 13.56MHz RFID UID IC Card Reader

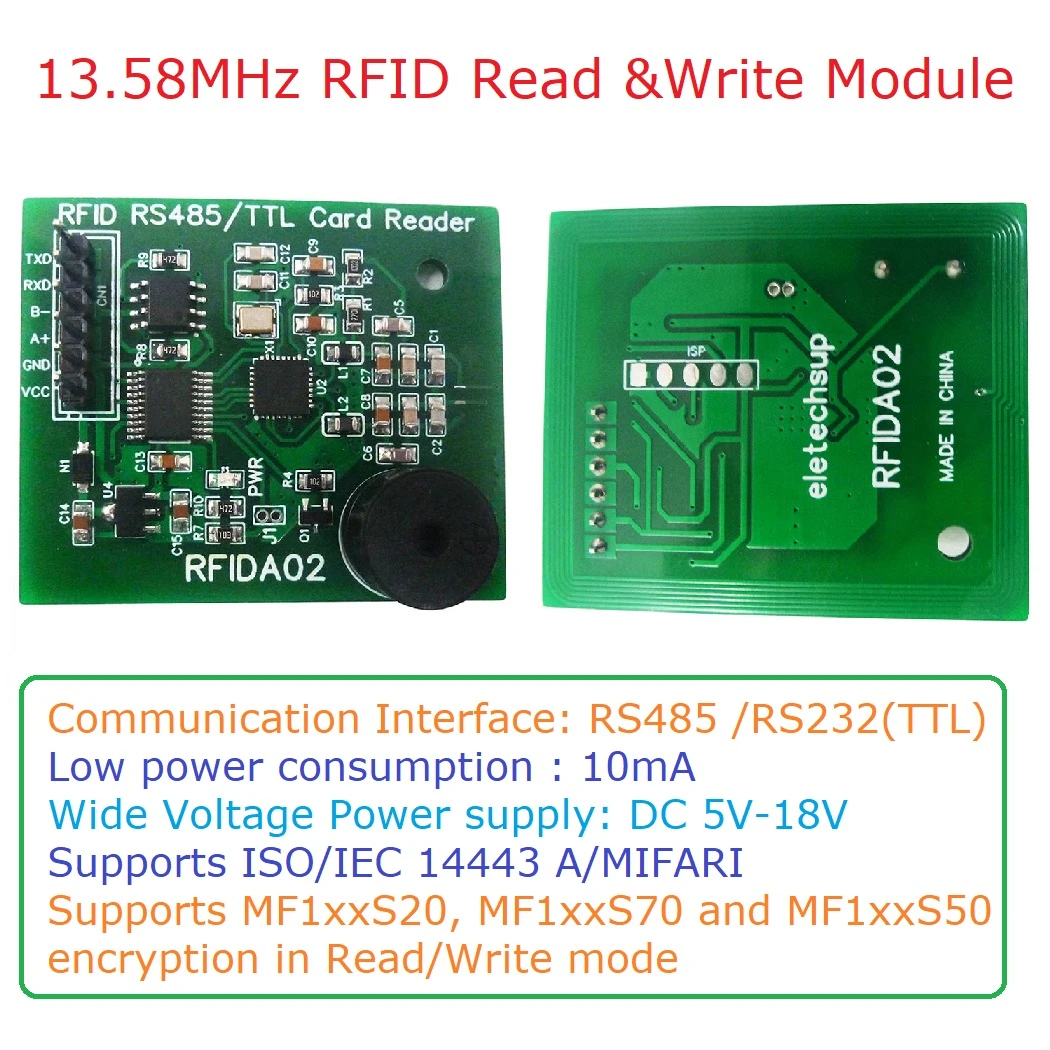

Features
Working frequency: 13.56MHZ
Support protocol: ISO/IEC 14443 A
Baud rate: optional, default 9600Bit/S

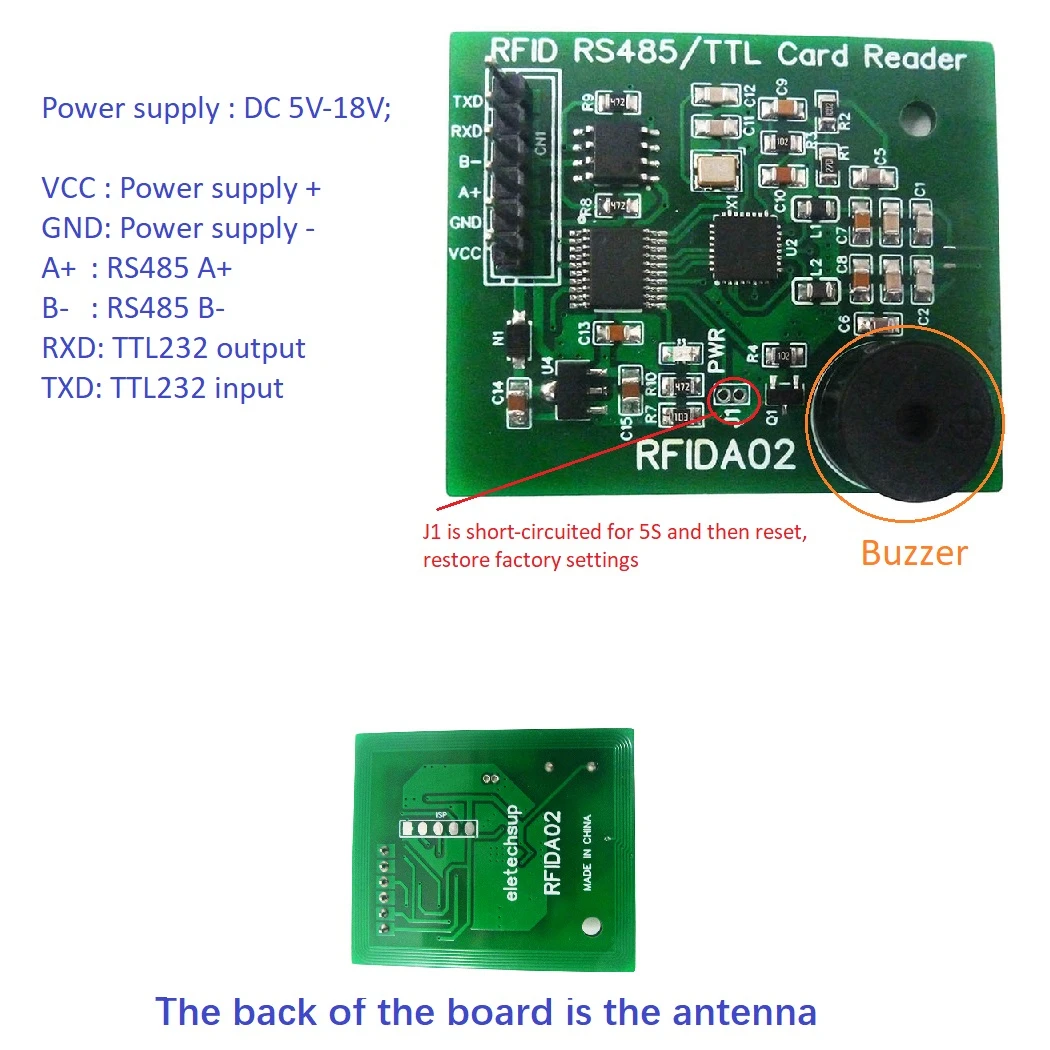

Working voltage: DC5V-18V
Working current: about 10mA
Appearance size: 45*38 *11mm
Weight : 8g

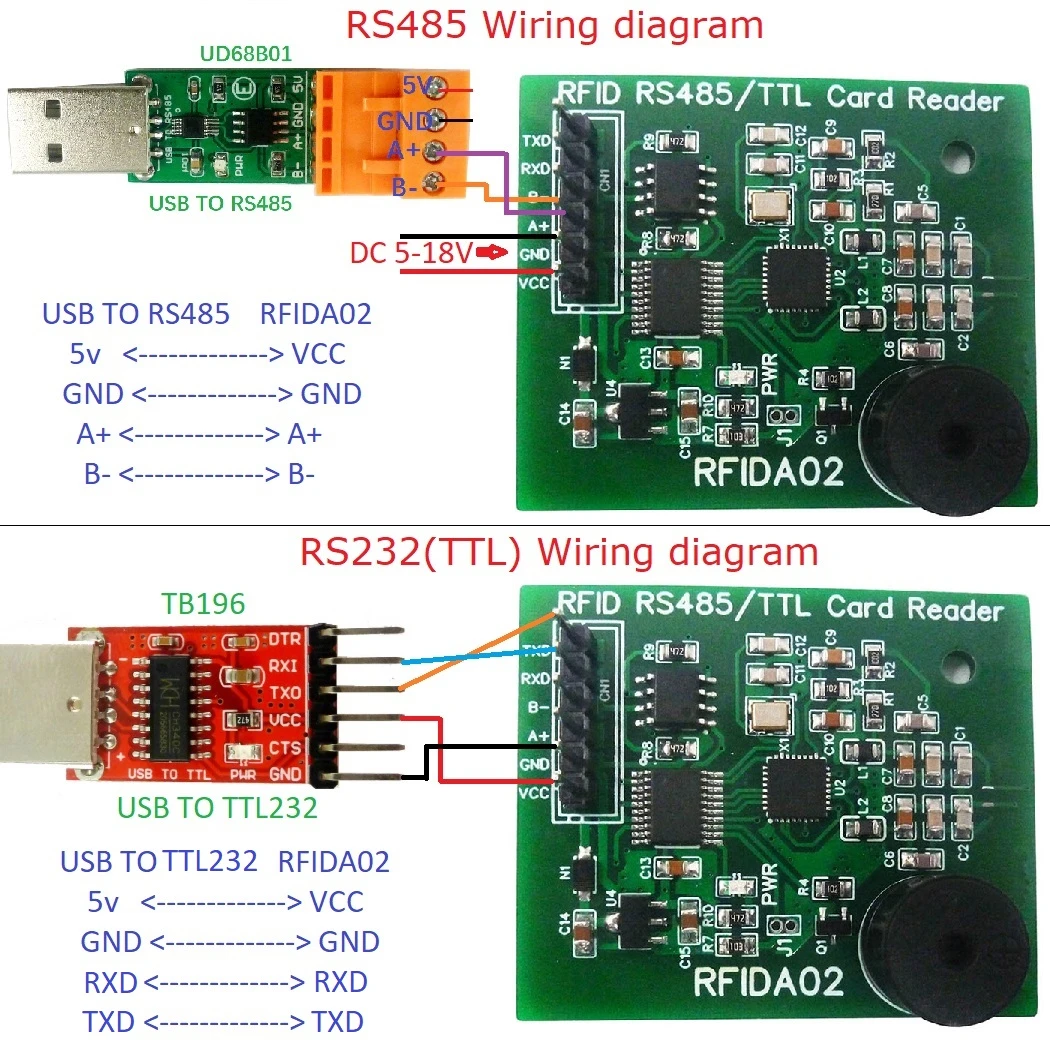

Communication interface: RS485, TTL
Status prompt: LED, buzzer
Function: select card number UID, read and write block data, sector encryption, value-added depreciation, etc.
Working mode: the default active card reading number once, can set active reading block, passive card reading number or block, etc.
Communication protocol: Please refer to the communication protocol document for the communication protocol
Supports MF1xxS20, MF1xxS70 and MF1xxS50 encryption in Read/Write mode
Supported card types: M1 S50, S70, UltraLight, Pro, Desfire, etc.
For more information, please contact us!!!
Typical application:
Keyless entry system
Smart home, Home automation
Industrial Systems
