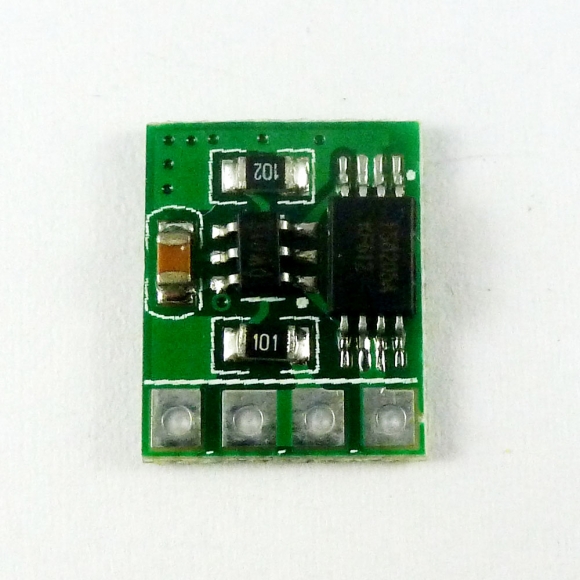

Product Name: 3.7V 4.2V 3A Li-ion Lithium Battery Charger Over Charge Discharge Overcurrent Protection Module For 18650 TP4056 DD05CVSA





Description:


Functions:


Over Charge Protection


Over Discharge Protection


Short Circuit Protection


Overcurrent Protection




Parameters:


Over Charge Detection Voltage: 4.28±0.05V


Over Charge Release Voltage: 4.26±0.05V


Over Discharge Detection Voltage: 2.5±0.1V


Over current Detection Current: 1-3A


Overcurrent protection : 3.2±0.2A





Size : 12.6x10.2x2.1mm


Weight : 0.34g




Note: Please charge the first time, activate the protection board. Otherwise there is no voltage output




Wiring:


B- connected to battery negative


B+ connected to battery positive


P+ Connect the charger/load positive


P- Connect the charger/load negative





Applications








3.7V lithium battery 18650


TP4056 Charging module


DD04CVSA DD05CVSA Module
