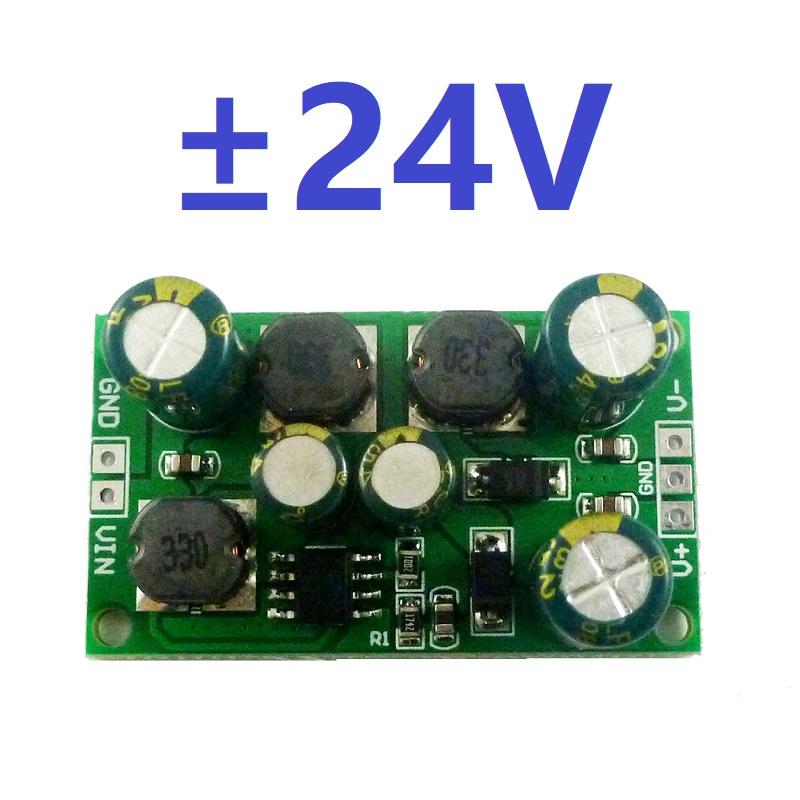

Product Name: 2 In 1 8W Boost-Buck Dual +- Voltage Board 3-24V To 5V 6V 9V 10V 12V 15V 18V 24V For ADC DAC LCD op-amp Speaker


Packing list:

1 PCS DC DC Boost-Buck Converter +/- voltage Dual voltage Module










Description:





Input voltage 3~24V,output optional ±5V/±6V/±9V/±10V/±12V/±15V/±18V±24V


Maximum output power: 1-8W (For details, please see the description at the bottom or ask us for information.)


Conversion efficiency :70-90%


Quiescent current: 3-4mA

Accuracy : Positive voltage ±3%,Negative voltage ±5%





8W DC-DC Boost-Buck Converter working frequency 400KHZ.


Operating ambient temperature : -40~+85 Degrees Celsius





Size : 42 x 24 x 15mm


Weight : 10g





High efficiency up to 90%


Built in Frequency Compensation


Built in Soft-Start Function


Built in Thermal Shutdown Function


Built in Current Limit Function







Note:


1 In order to obtain a more stable voltage, it is recommended that the output is greater than 10MA


2 V- cannot be used alone, or no voltage output.But you can just use V+


















Applications







ADC/DAC/Operational Amplifier Reference voltage


RS232 RS485 RS422 Bus


Audio equipment


Low power audio power supply


Car audio amplifier dual power board


LCD power supply


Instrumentation equipment







Attention :




This is a DC-DC voltage converter module,Must be noted when using:



1 Input voltage can not be greater than the maximum input range

2 Output power can not be greater than the maximum load for a long time

3 Input power must be greater than the output power, because the power consumption of the module itself







Q & A:




Q1 : Why output voltage is less than the nominal voltage


A1: Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low





Q2 : Why is the negative voltage not output or the output too low?


A2 : The negative voltage cannot be used alone. When using a negative voltage, the same load must be connected at the positive voltage terminal.






















The maximum output power can reach 8W, but the maximum power will vary under different conditions. For details, please refer to the following table(10-80% of the maximum power is the most reliable):



Input DC 3-24V,Output ±5V

Input voltage: 3V/3.3V/3.7V/5V/6V/9V/12V/15V/18V

Maximum output current: 0.1-0.8A



Input DC 3-24V,Output ±6V

Input voltage: 3V/3.3V/3.7V/5V/6V/9V/12V/15V/18V

Maximum output current: 0.1-0.7A





Input DC 3-24V,Output ±9V

Input voltage: 3V/3.3V/3.7V/5V/6V/9V/12V/15V/18V

Maximum output current: 0.04-0.6A



Input DC 3-24V,Output ±10V

Input voltage: 3V/3.3V/3.7V/5V/6V/9V/12V/15V/18V

Maximum output current: 0.03-0.55A





Input DC 3-24V,Output ±12V

Input voltage: 3V/3.3V/3.7V/5V/6V/9V/12V/15V/18V

Maximum output current: 0.03-0.46A



Input DC 3.3-24V,Output ±15V

Input voltage: 3.3V/3.7V/5V/6V/9V/12V/15V/18V

Maximum output current: 0.03-0.41A



Input DC 3.7-24V,Output ±18V

Input voltage: 3.7V/5V/6V/9V/12V/15V/18V

Maximum output current: 0.04-0.31A



Input DC 3.7-24V,Output ±24V

Input voltage: 3.7V/5V/6V/9V/12V/15V/18V

Maximum output current: 0.03-0.25A
