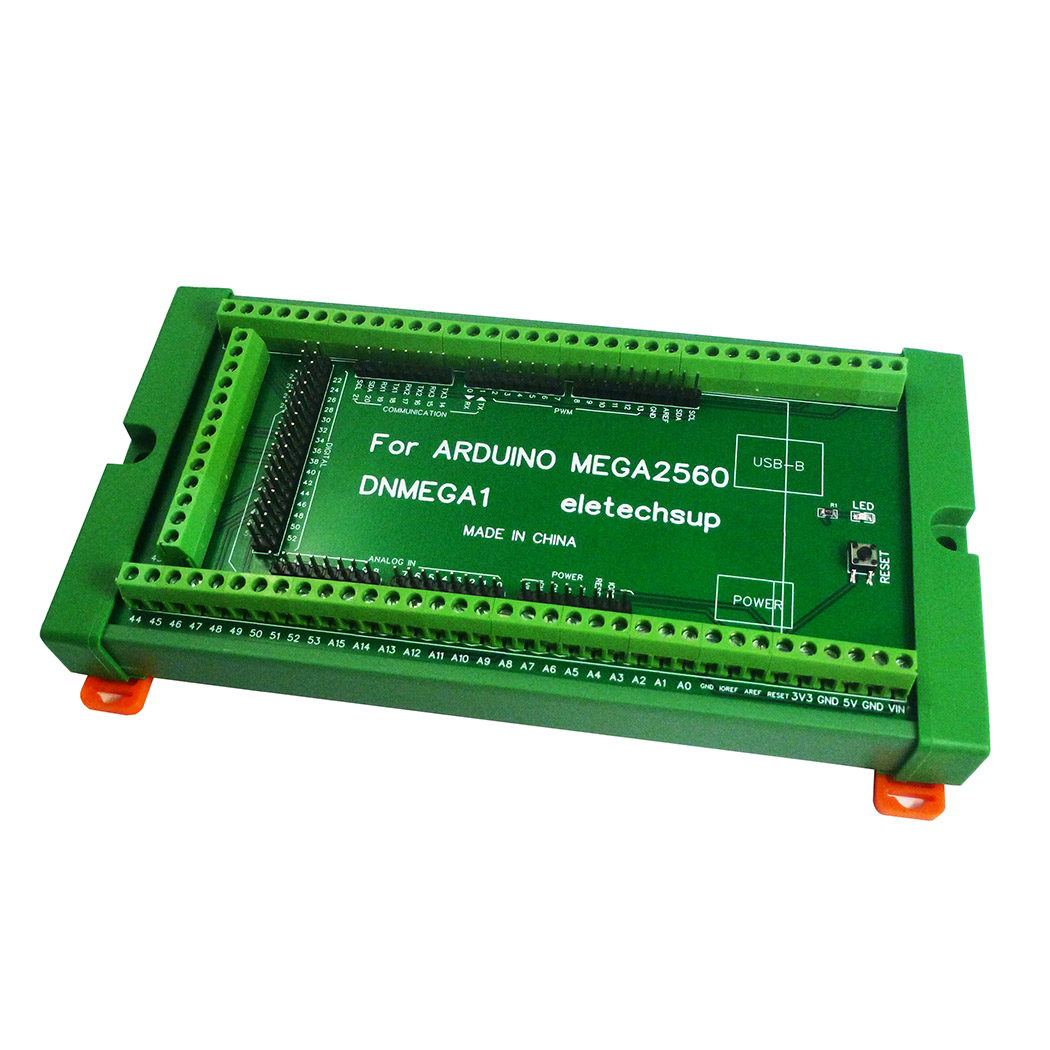

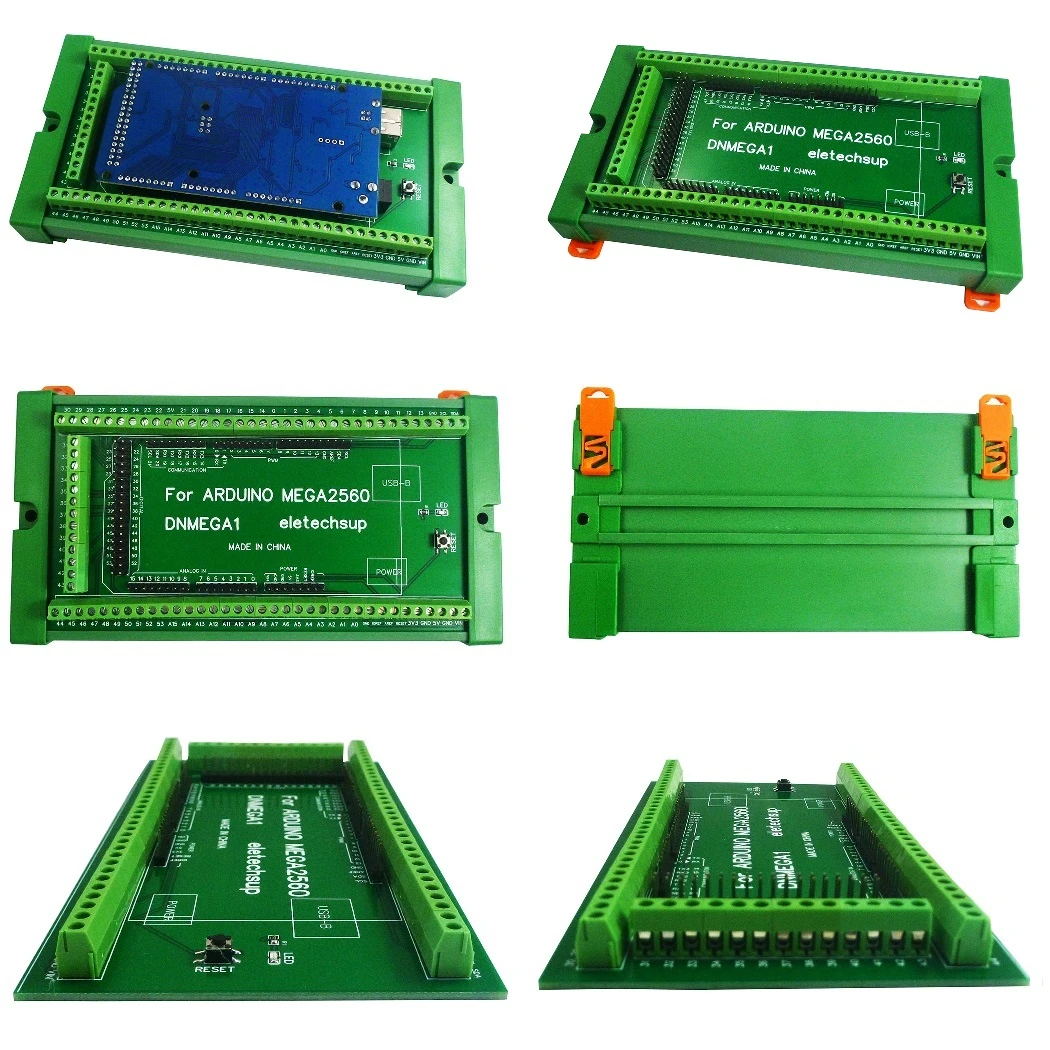

DNMEGA1 DIN Rail Mount Screw Terminal Block Adapter Module For Arduino MEGA2560 R3 Atmega2560 Dev Baord

DNMEGA1 DIN Rail Mount Screw Terminal Block Adapter Module For Arduino MEGA2560 R3 Atmega2560 Dev Baord

  • Model: DNMEGA1_R
  • Availability: In stock
  • Weight: 0.205Kg
$21.99
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns
Product Name:DIN Rail Mount Screw Terminal Block Adapter Module For Arduino MEGA2560 R3 Atmega2560 Dev Baord














Package inlcuded:







1 Pcs DNMEGA1 DIN PinBoard for MEGA2560 R3(only board or with shell)



(does not include the MEGA2560 module)

















Illustrate:







Terminal spacing: 3.96mm.



Terminal Blocks: Wire Range 26-16AWG, Strip Length 3.96mm, Metric M2/M2.5 Slotted Screws.



Size: 147*80 *12mm(only Board);165*85 *25mm(with Rail Box)



Weight: 86g(only Board),192g(with Rail Box)










Use:



DIN Rail Mount Screw Terminal Adapter Module for Arduino MEGA2560 Board.



With this adapter modules, you can easily extend your Arduiuo projects to industrial control applications.










Notice:



This product does not include the MEGA2560 Board

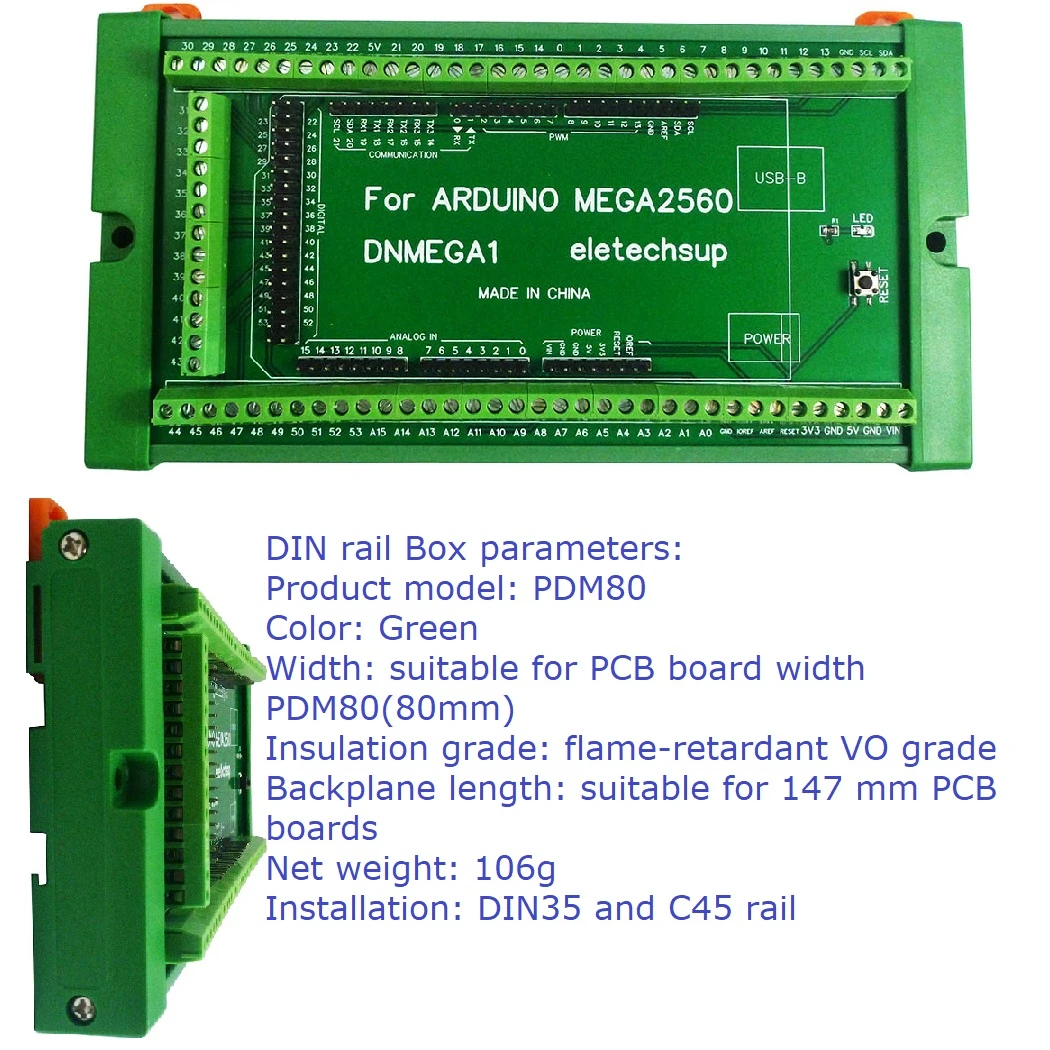

DIN rail Box parameters:






Product model: PDM80
Color:



Green






Width: suitable for PCB board width PDM80(80mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 147 mm PCB boards
Net weight: 106g
Installation: DIN35 and C45 rail
