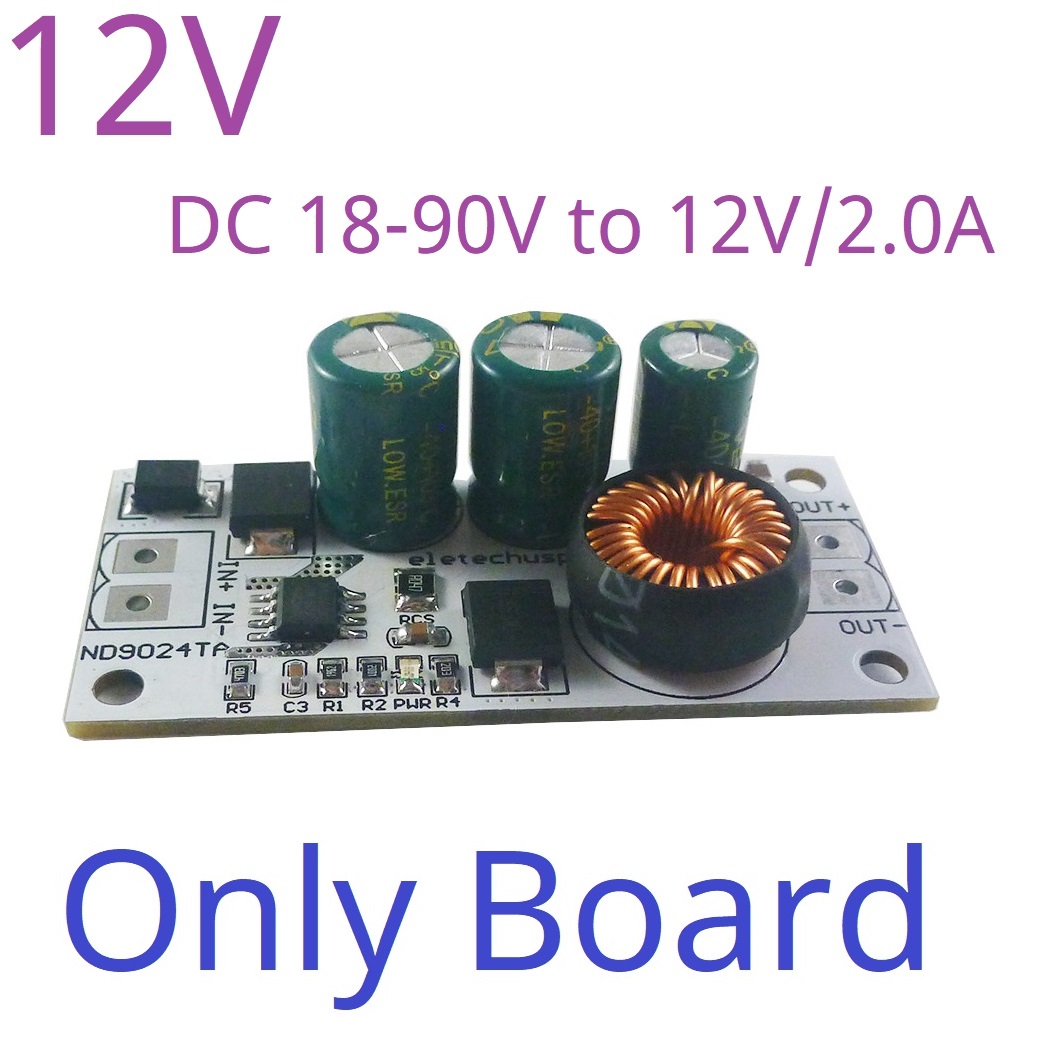

ND9024TA Out 12V No terminal 2.5A DC 10-90V to 5V 12V 24V DC-DC Converter High-Voltage Buck Regulator Module for Lion Lipo LiFePO4 Lead-acid Solar battery

ND9024TA Out 12V No terminal 2.5A DC 10-90V to 5V 12V 24V DC-DC Converter High-Voltage Buck Regulator Module for Lion Lipo LiFePO4 Lead-acid Solar battery

  • Model: ND9024TA_12V_NO
  • Availability: In stock
  • Weight: 0.025Kg
$4.12
  • Description
  • Technical Documents
  • Guidance videos
  • Reviews
  • Shipping & Returns
ND9024TA is Eletechsup high performance high voltage buck module, up to 90V input, optional 5V/12V/24V output.
Multiple protections to ensure the safety of electricity use
Input anti-reverse protection
90V TVS anti-surge protection
Output short circuit protection
Over temperature protection
Overheating protection
Overcurrent protection



5V :
Input voltage 10~90V,output 5V
Maximum output current 2.5A
DC-DC high-voltage Step-Down Converter module working frequency 110KHz.
Maximum conversion efficiency is 92% .
Quiescent current: about 2.3mA
Operating Temperature : –45°C to +125°C
Size : 55 x 26.5 x 16mm
Weight : With terminal 17g;No terminal 14g



12V :
Input voltage 18~90V,output 12V
Maximum output current 2A
DC-DC high-voltage Step-Down Converter module working frequency 110KHz.
Maximum conversion efficiency is 92% .
Quiescent current: about 2.4mA
Operating Temperature : –45°C to +125°C
Size : 55 x 26.5 x 16mm
Weight : With terminal 17g;No terminal 14g

24V :
Input voltage 30~90V,output 24V
Maximum output current 1.25A(30W)
DC-DC high-voltage Step-Down Converter module working frequency 110KHz.
Maximum conversion efficiency is 92% .
Quiescent current: about 2.4mA
Operating Temperature : –45°C to +125°C
Size : 55 x 26.5 x 16mm
Weight : With terminal 17g;No terminal 14g


Attention :
This is a high voltage DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
4 When the input voltage is greater than 30V, please connect the wires first and then power on.



Applications:

Electric bicycle EBike motorcycle
DC 90V 72V 64V 60V 48V 36V 24V
CCTV PTZ camera
RS485 Modbus equipment
Motor Toy Wifi Router
Network equipment
Multimeter instrumentation
Electric toys
Smart home / home automation
Battery powered equipment



Tip: We only provide three voltage versions of 5V/12V/24V. If it cannot meet your needs, please change the output voltage by modifying the value of the R1 resistor.


Matching shell
This shell cannot dissipate heat. When using it, it is recommended to use the following power:
5V version: maximum output 6W
12V version: maximum output 12W
24V version: maximum output 12W
